AD5228BUJZ50-RL7
Manufacturer:
Analog Devices
Mfr.Part #:
AD5228BUJZ50-RL7
Datasheet:
Description:

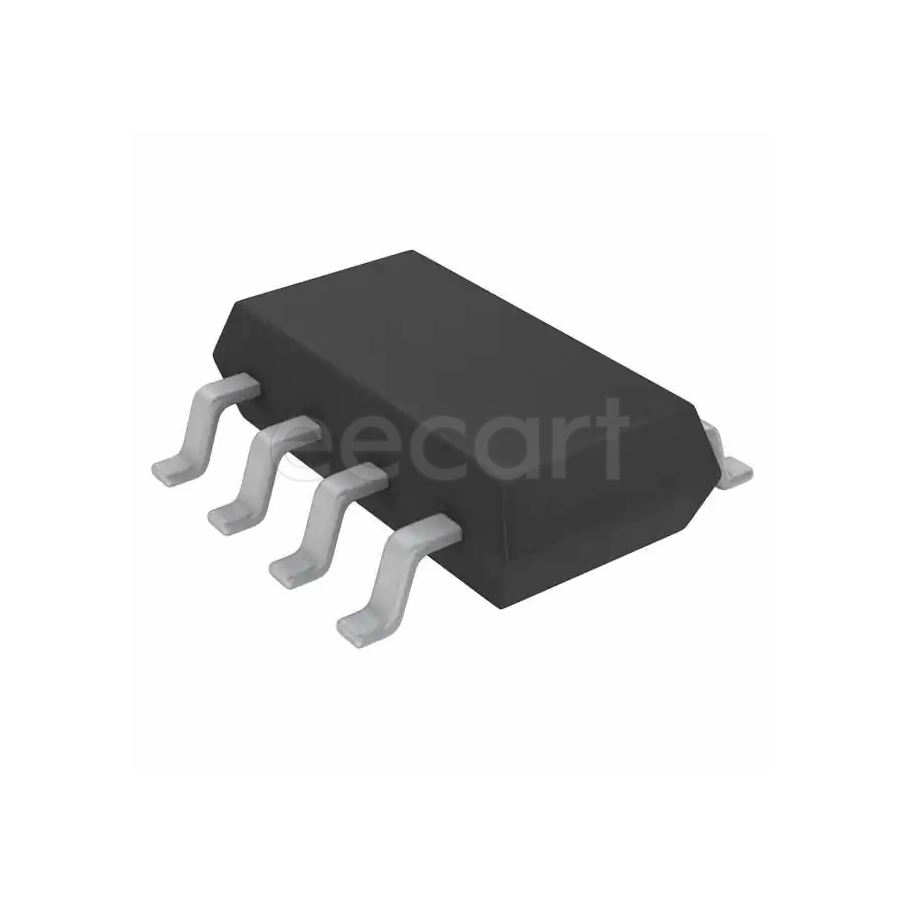

Digital Potentiometers TSOT-8 SMD/SMT Number of Taps:32 Number of Circuits:1 50 kΩ 2-Wire
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Resistance | 50 kΩ |
| Temperature Coefficient | 35 ppm/°C |
| Taper | Linear |
| Packaging | Reel |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Interface | 2-Wire |
| Memory Type | Volatile |
| Number of Circuits | 1 |
| Operating Supply Voltage | 5.5 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Operating Supply Current | 400 nA |
| -3db Bandwidth | 460 kHz |
| Quiescent Current | 50 µA |
| Max Supply Current | 50 µA |
| Number of Taps | 32 |
| Nominal Supply Current | 400 nA |
| Number of Positions | 32 |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 1 week ago) |
| Configuration | Potentiometer |
Stock: 1269
Distributors
pcbx
pcbxUnit Price$1.56367
Ext.Price$1.56367
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.56367 | $1.56367 |
| 10 | $0.99685 | $9.96850 |
| 25 | $0.84296 | $21.07400 |
| 50 | $0.68600 | $34.30000 |
| 100 | $0.55827 | $55.82700 |
| 300 | $0.51142 | $153.42600 |
| 500 | $0.46850 | $234.25000 |
| 1000 | $0.44798 | $447.98000 |
| 3000 | $0.43174 | $1295.22000 |
| 5000 | $0.43089 | $2154.45000 |
